20k ultrasonic metal welding equipment

Ultrasonic metal welder joining materials through solid-state atomic diffusion.

1. Solid-State Bonding
No surface melting required; friction removes contaminants for clean atomic diffusion.

2. Refined Grain Structure
Recrystallization creates fine grains comparable to cold-worked metal.

3. Efficient & Versatile
100-6000W power range with simple operation and no high-temperature hazards.

Spu:

HC-MW20

Overview
Recommended Products

Product Description

Ultrasonic metal welding oes not require the surface of the molten material to connect them. Instead, it applies high-frequency vibration to the two metal workpieces that need to be connected, which are placed between the "weld head" and the "anvil". The lower workpiece is "grabbed" by the toothed lines on the anvil and fixed in place. The frame drives the weld head to press the upper workpiece down until the upper and lower workpieces are in close contact and pressed. Then the welding head vibrates horizontally to generate vibration energy and remove surface contaminants and other coatings on the joint surface of the upper and lower workpieces. The friction generated by vibration will clear the unevenness of the joint surface, creating a clean, continuous welding area, allowing the atoms to cross the joint surface and spread freely to the other side. When the vibration stops, the free diffusion of this atom will recrystallize into a fine grain structure comparable to that of the cold-worked metal. The ent

Product Details

Product name:Ultrasonic metal welding equipment
Frequency:20k
Voltage:220v/50hz
refined grain:Metal welding
Tool head used the second time:100000-3x100000
Welding power:100-6000w
Application:industry, electronics, semiconductors
Feature:No high temperature, simple and convenient
Advantage:Solidly welded
Packing:Filled with pearl cotton, packaged in cardboard or wooden boxes
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:3 years
Condition:New
Warranty:1 Year
Key Selling Points:Metal welding
Place of Origin:CN;ZHE
Applicable Industries:Electronics industry
Applicable Industries:electrical equipment
Core Components:transducer
Brand Name:HCSONIC
Rated Capacity:/
Rated Duty Cycle:100%
Max. Welding Thickness:0.2mm
Dimensions:410*110*260mm
Usage:Spot Welding
Voltage:110v/220v
Power (kW):100-6000w
Weight (KG):10

Device Overview

The 20K ultrasonic metal welding equipment utilizes 20 kHz high-frequency vibrations to generate heat through high-speed friction of metal surface molecules, achieving atomic-level bonding in the solid state. It offers advantages such as robust weld joints, excellent electrical conductivity, and a small heat-affected zone, making it suitable for welding various metals including copper, aluminum, and nickel. It is particularly applicable for applications like lithium battery tab welding and automotive wiring harness assembly. The equipment typically features automatic frequency tracking and overload protection functions, offering user-friendly operation and significantly enhancing welding efficiency and quality.

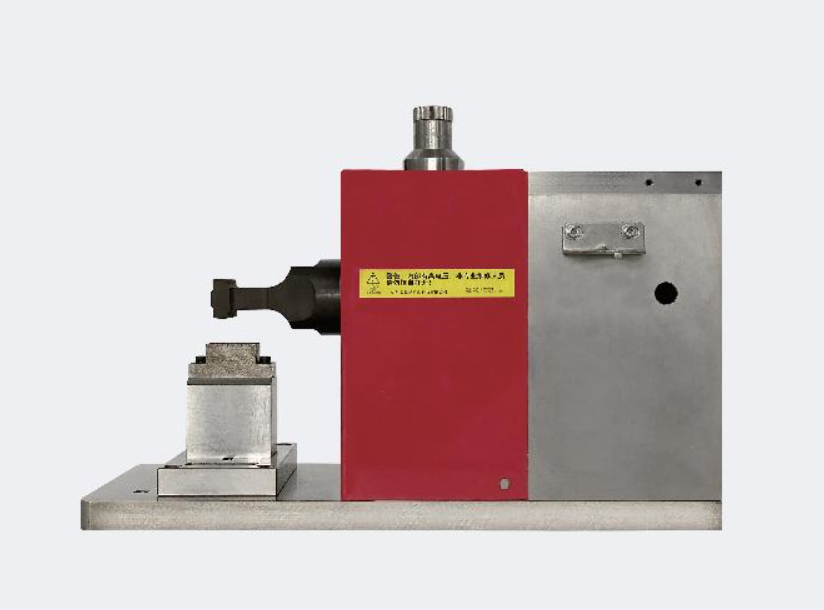

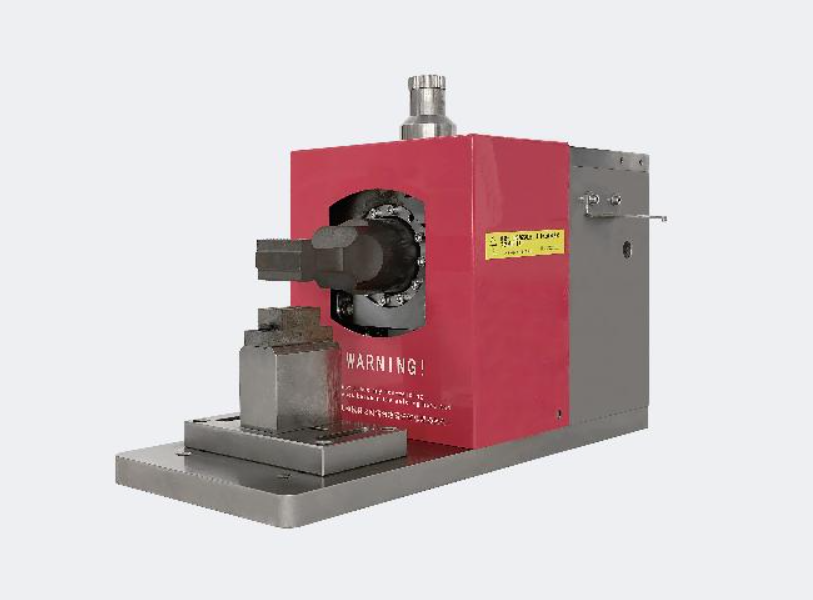

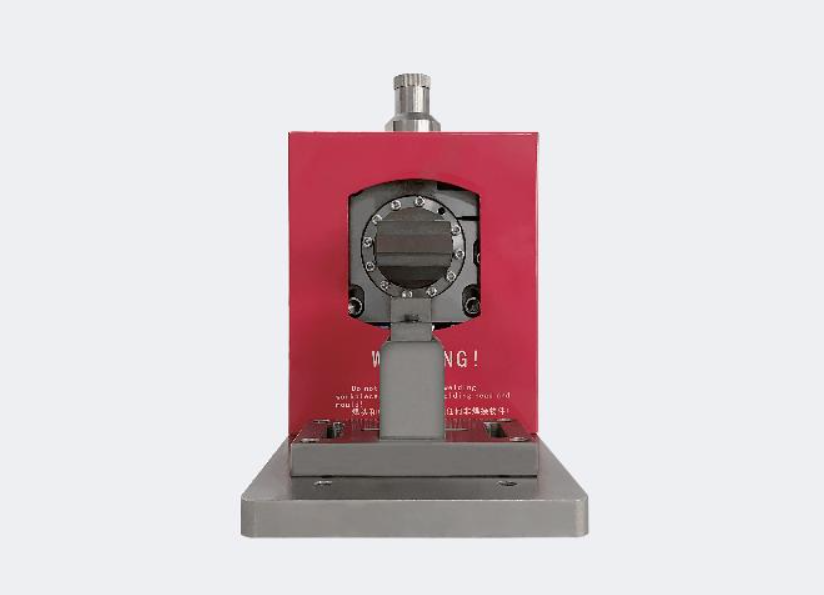

Device Overview (1).png Device Overview (2).png Device Overview (3).png

Operational principle

The working principle of the 20K ultrasonic metal welding equipment relies on energy transfer and conversion through high-frequency mechanical vibrations:

1. Generation of high-frequency vibrations: The device converts electrical energy into high-frequency mechanical vibrations at 20 kHz (20,000 cycles per second) via a transducer, with the vibration amplitude amplified by a boom.

2. Combination of pressure and vibration: Under the clamping force of the welding fixture, the surface of the metal to be welded is subjected to a certain pressure, while high-frequency vibration generates intense friction at the contact surfaces.

3. Formation of solid-state bonding: The heat generated by friction causes the metal at the contact surfaces to enter a plastic state, disrupting the surface oxide layer. Under pressure, fresh metal atoms diffuse and fuse with each other, ultimately forming a robust solid-state bond (without requiring melted metal).

The entire process is rapid and efficient, eliminating issues such as thermal deformation and spatter associated with traditional welding, making it ideal for connecting precision metal components.

Device Advantages

The advantages of the 20K ultrasonic metal welding equipment are primarily reflected in the following aspects:

• Excellent welding quality: Utilizing a solid-state connection method that eliminates metal melting, it prevents issues such as thermal deformation, oxidation, and spatter, resulting in high-strength welds with excellent conductivity, making it ideal for precision components.

• High efficiency: The welding process is rapid (typically completed within seconds) and can be integrated with automated production lines for batch processing, significantly enhancing production efficiency.

• Wide applicability: Capable of welding various metal materials, including copper, aluminum, nickel, and even alloy metals (e.g., copper-aluminum joints), meeting diverse application requirements.

• Energy-efficient and eco-friendly: Requires no consumables such as welding wire or flux, features low energy consumption, and emits no harmful gases during the welding process, meeting environmental standards.

• User-friendly operation: Most devices feature automatic frequency tracking and parameter memory functions, enabling simple debugging with low operational skill requirements and convenient maintenance.

Device Application

The 20K ultrasonic metal welding equipment, thanks to its unique welding capabilities, finds extensive applications across various fields, including:

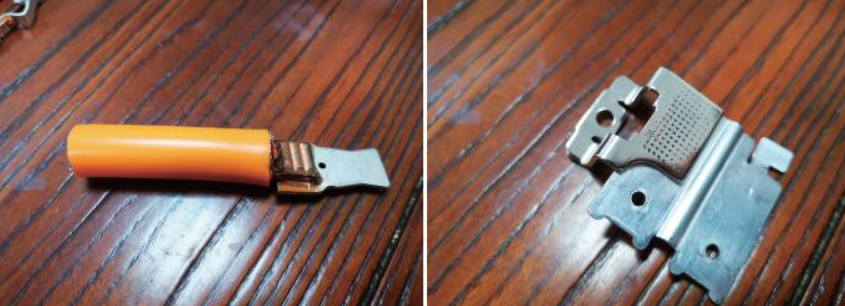

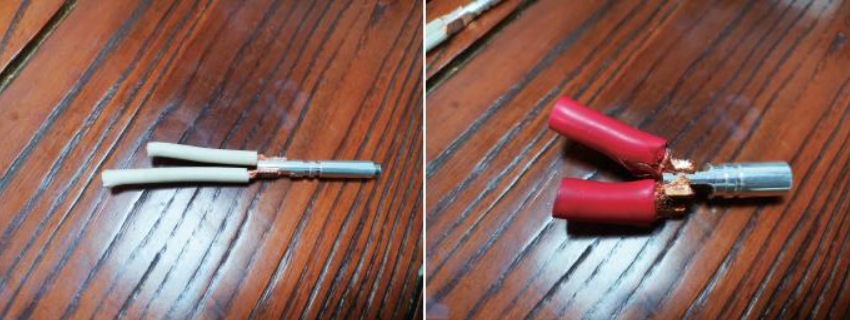

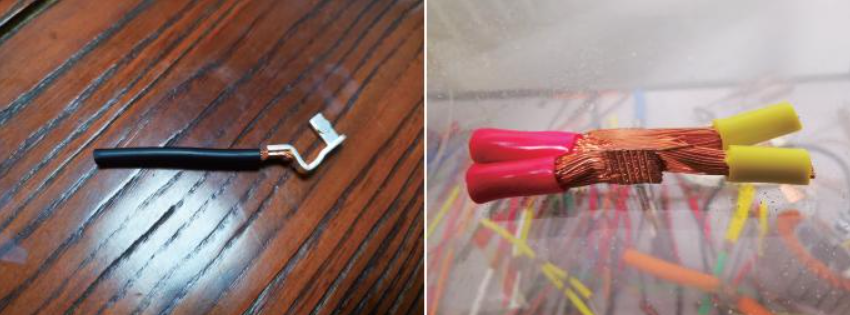

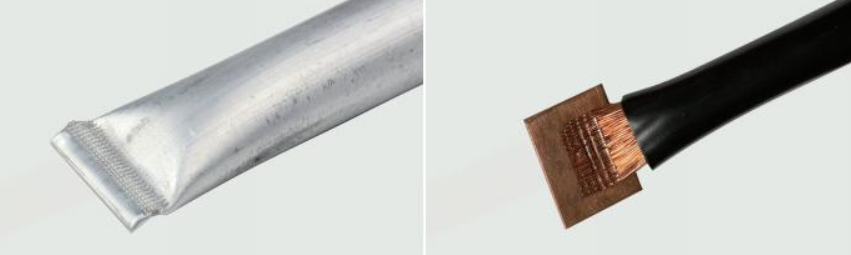

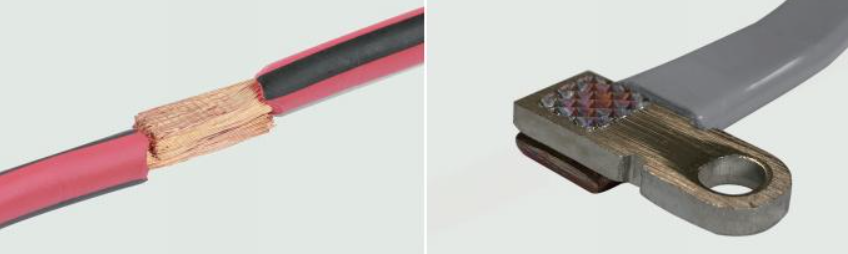

• New energy sector: welding of lithium battery tabs and electrodes; connecting copper-aluminum busbars and interconnect plates in battery PACK structures; and welding of metal leads in photovoltaic modules.

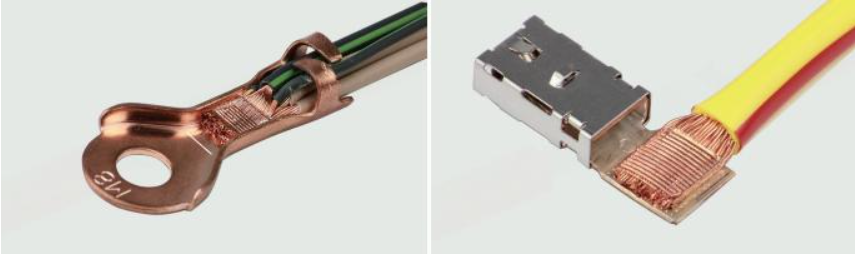

• Automotive industry: Suitable for connecting precision metal components such as automotive wiring harnesses (copper/aluminum wires), sensor leads, motor commutators, and radiators.

• Electronics and electrical appliances sector: Used for welding small precision metal components such as miniature switches, connectors, terminals, and motor brushes, as well as connecting wires to terminals.

• Medical devices: Compatible with biocompatible metals such as weldable stainless steel and titanium alloys, suitable for connecting precision components of surgical instruments and medical sensors.

• Hardware and Aerospace: Suitable for connecting heterogeneous metals (e.g., copper-aluminum, aluminum-nickel), as well as providing efficient connections for precision metal components and small hardware parts in the aerospace industry.

Its solid-state welding properties meet the demands for high welding accuracy, strength, and minimal damage across various applications, with particularly outstanding performance in the fields of new energy and precision manufacturing.
