Ultrasonic atomization nozzle – wide spray type
The ultrasonic sector atomization nozzle is a highly efficient, precise, and energy-saving atomization device. Utilizing ultrasonic technology, it achieves gentle disruption of liquids to produce ultra-fine, uniform sector-shaped mist fields, making it particularly suitable for precision spraying and humidification applications requiring low flow rates and high uniformity. It serves as a critical tool in modern advanced manufacturing and precision processes.

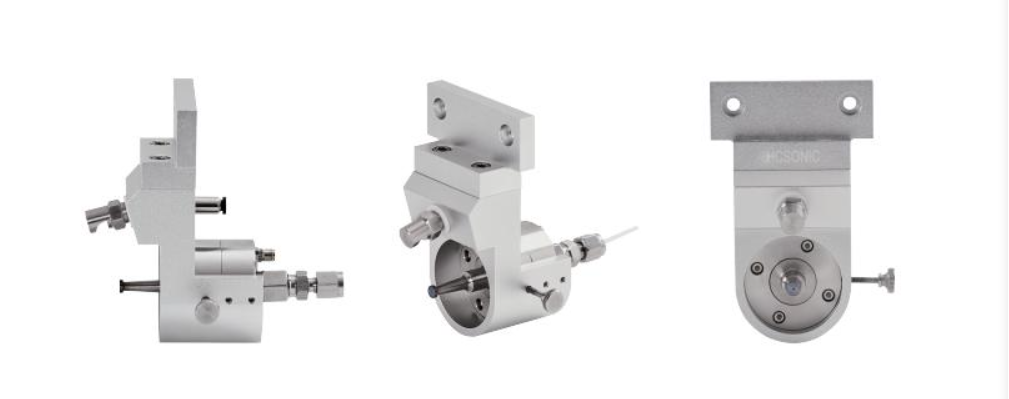

Wide-nozzle atomizing spray nozzle from different perspectives
Experimental Demonstration

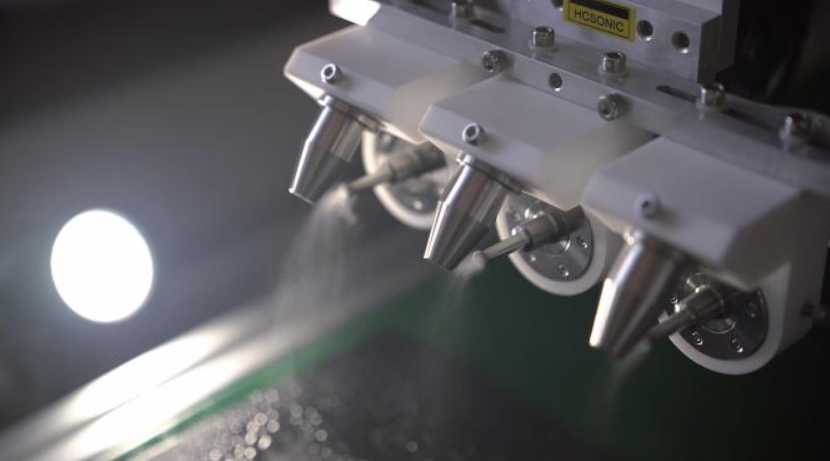

The ultrasonic wide-spray atomization nozzle generates a fan-shaped mist jet, providing an extensive atomization coverage area. Multiple nozzles can be connected in series to form a fan-shaped atomization spraying system.
Plant parameter
| Device Model: HC-LAKSH-GL | Spraying width: 5–60 mm | diversion pressure: <0.01 MPa |
| Frequency range: 30–120 kHz | Liquid viscosity: <50 cp | Operating temperature: 20–80°C |
| Nebulized particles: 5–60 μm | Spray Height: 30–80 mm | Spray flow rate: 5–60 ml/min |
Example Demonstration

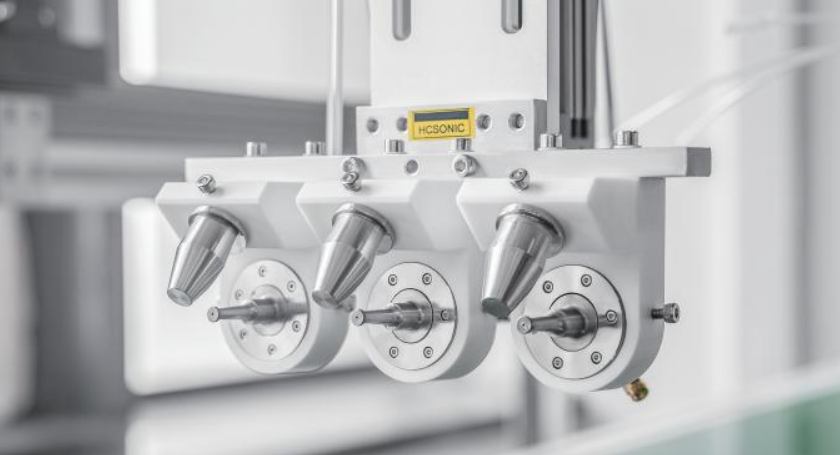

Row-mounted atomization system

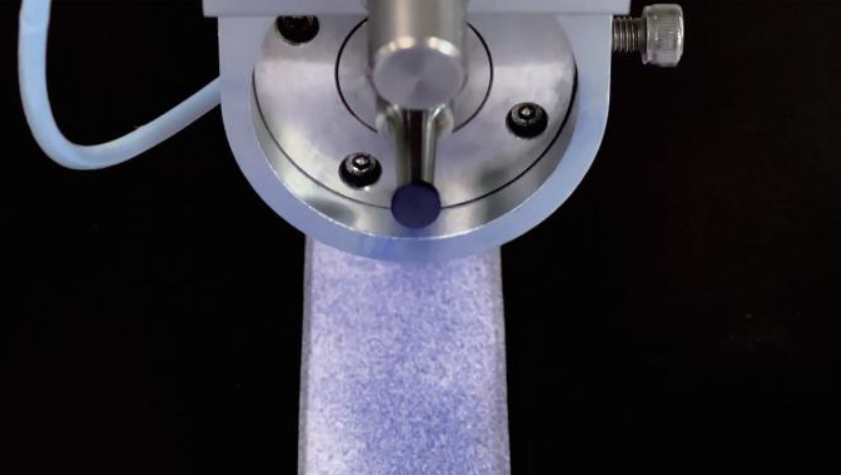

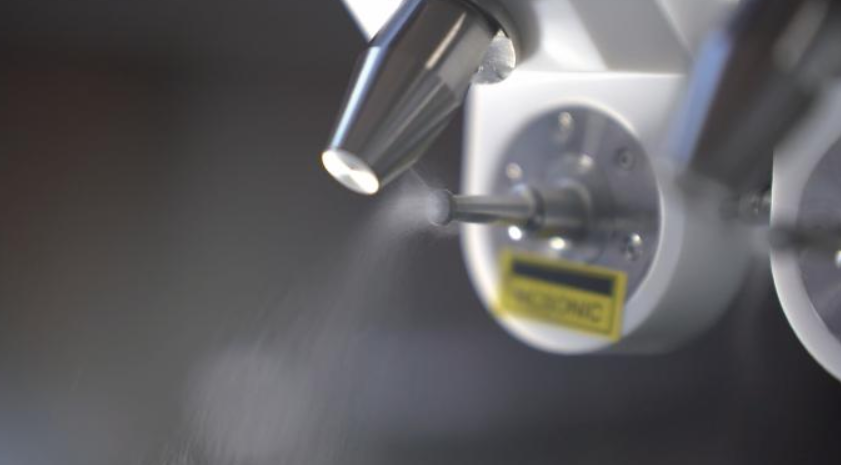

The mist jet from a wide-bore atomizing nozzle
Spray Effect

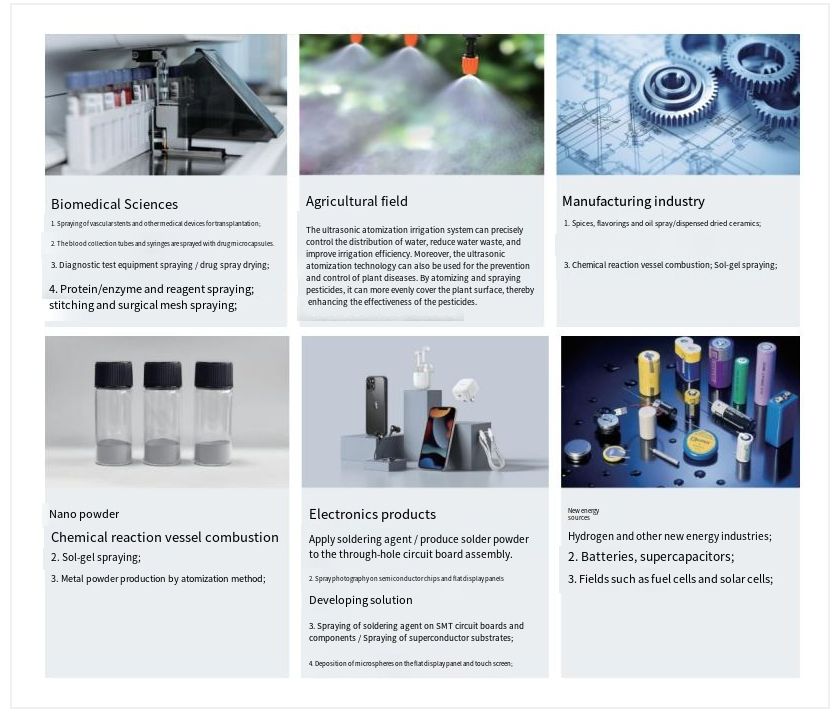

Application Areas of Ultrasonic Nebulization
Common Questions Guide
1. How to prevent blockage of the ultrasonic nebulizer head?
(1) Understand the liquid properties prior to atomization; if the viscosity is excessively high or the solid content is too high, pretreatment is required. (2) Perform pipeline cleaning shortly after equipment shutdown.
2. How to address blockage of the ultrasonic nebulizer head?
The inlet and outlet ports of ultrasonic atomization heads typically have a diameter of 5 mm; fine needle holes with diameters less than 5 mm can be used for passage, and the tubing should be cleaned with solvent after opening.
3. Does the fluid supply system affect ultrasonic atomization?
The liquid supply significantly impacts the atomization efficiency of ultrasound. Instability in the liquid delivery system may lead to issues such as intermittent atomization and nozzle clogging. Therefore, when selecting a liquid supply pump, it is essential to consult with our technical team.
4. Is using 70% power consistently for sample processing appropriate? Other power levels should be tested to assess their impact on results. If identical results are achieved at 50% power, reaching 70% is unnecessary. However, it is recommended to maintain power below 80% to extend equipment lifespan.
5. Is higher air pressure always preferable during ultrasonic atomization? The efficacy of ultrasonic atomization is independent of air pressure; pressure primarily serves to operate the cooling equipment and guide the flow direction. Users should adjust the appropriate air pressure according to actual operational conditions during spraying, as excessively high pressure may 오히려 compromise the atomization quality.
